Diatom Gallery #2

Araphid and Monoraphid Forms


Araphid Forms

Asterionella

1. Asterionella formosa

400x
800x
  MTU settling pond
surface plankton tow
10/16/05
11°C

2. Asterionella formosa

500x
    Keweenaw Waterway at MTU
oblique plankton tow
10/16/05
13.5°C

3. Asterionella

800x
    Traverse River at Mohawk-Gay Rd
plant detritus sample
5/20/10
18°C

4. Asterionella

800x
    same as above


Diatoma

1. Diatoma

800x
    Pilgrim River upstream of US-41
rock scraping
5/24/10
18°C

2. Diatoma

800x
    same as above

3. Diatoma

800x
    same as above

4. Diatoma

500x
800x
  same as above

5. Diatoma

800x
    same as above

6. Diatoma


800x
    same as above


Fragilaria

1. Fragilaria crotonensis


500x
    Keweenaw Waterway at MTU
oblique plankton tow
8/12/10
pH 8.6, 26°C, 132 uS

2. Fragilaria crotonensis

800x
    Torch Lake at Hubbell boat launch
surface plankton tow
5/20/10
17°C

3. Fragilaria crotonensis

800x
    Torch Lake at Lake Linden boat launch
surface plankton tow
9/27/05
18.5°C

4. Fragilaria


800x
    Jacobsville old quarry pond
aquatic plant sample
8/7/10
pH 7.6, 17°C, 121 uS

5. Fragilaria capucina

800x
    Pilgrim River upstream of US-41
rock scraping
5/24/10
18°C

6. Fragilaria capucina

250x
800x
  Dollar Bay from shore
surface plankton tow
6/19/07
19°C


Meridion

1. Meridion circulare


800x
    Pilgrim River upstream of US-41
rock scraping
5/10/03
6.5°C

2. Meridion circulare


800x
    same as above

3. Meridion circulare


800x
    same as above

4. Meridion circulare


800x
    Tech Trails creek
plant detritus sample
5/14/03
9.5°C

5. Meridion circulare


400x
    same as above


Synedra

1. Synedra capitata


320x

1000x
  Dollar Bay from boat
aquatic plant sample
9/26/01

2. Synedra ulna var. contracta


800x
    creek south of Calumet
filamentous algae sample
10/3/01

3. Synedra ulna var. contracta
800x
    Pilgrim River upstream of US-41
rock scraping
5/24/10
18°C

4. Synedra


800x
    same as above

5. Synedra


800x
    old Laurium dump creek
filamentous algae sample
7/1/10
pH 7.4, 13°C, 802 uS

6. Synedra


640x
    Dollar Bay at marina
aquatic plant sample
5/20/10
20°C

7. Synedra


800x
    Jacobsville old quarry pond
aquatic plant sample
8/7/10
pH 7.6, 17°C, 121 uS

8. Synedra


400x
    Keweenaw Waterway at MTU
surface plankton tow
11/22/05
6.0°C

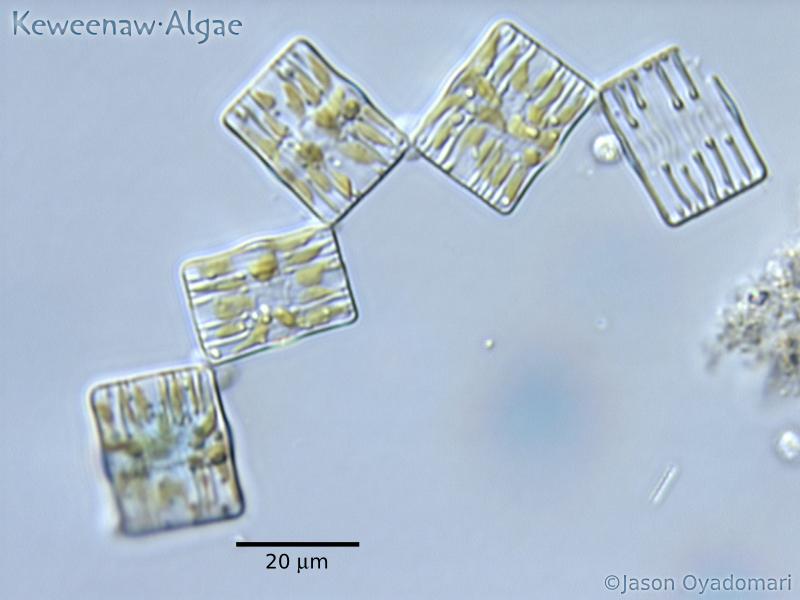

Tabellaria

1. Tabellaria fenestrata

640x
800x
  Traverse River at Mohawk-Gay Rd
plant detritus sample
5/20/10
18°C

2. Tabellaria fenestrata


250x

500x
  Dollar Bay at marina
plankton tow
8/12/10
pH 8.4, 26°C, 130 uS

3. Tabellaria fenestrata


250x

500x
  Jacobsville old quarry pond
aquatic plant sample
8/7/10
pH 7.6, 17°C, 121 uS
4. Tabellaria flocculosa

800x
    Dollar Bay at boat launch
plankton tow
5/20/10
20°C

5. Tabellaria flocculosa

800x
    Dover Creek pool at US-41
plankton tow
7/15/10
pH 6.8, 25°C, 130 uS

6. Tabellaria flocculosa

640x
    Keweenaw Waterway at Lily Pond
oblique plankton tow
8/29/05
15°C


Monoraphid Forms

Achnanthes

1. Achnanthes


800x
    Pilgrim River downstream of US-41
log scraping
11/1/01

2. Achnanthes


800x
    Rice Lake marsh #1
plankton tow through vegetation
8/12/10
pH 7.2, 26°C, 69 uS

3. Achnanthes


800x

800x
  same as above


Cocconeis

1. Cocconeis

800x
    Pilgrim River upstream of US-41
rock scraping
5/24/10
18°C

2. Cocconeis

800x
    same as above

3. Cocconeis

320x
640x
640x
same as above

4. Cocconeis
(auxospore)

800x
    same as above

5. Cocconeis
(auxospore)

800x
    same as above
